Sigma Mixer for Dough Moulding Compound

You are here:

Sigma Mixer for Dough Moulding Compound

Sigma Mixer for Dough Moulding Compound

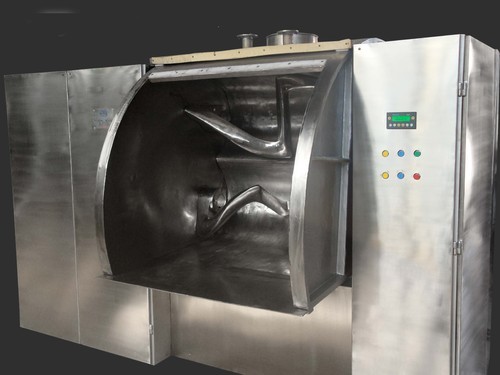

Double arm Sigma Mixer Machine


Sigma Mixer for Dough Moulding Compound


Application and Process of Sigma Mixer & Dough Kneader: Viscous Material Kneading, Mixing and Dispersing :

Abster Equipment has a team of skilled manufacturing professionals who put their entire efforts to manufacture Sigma Mixer for Dough Moulding Compound. Double Sigmna Mixer has latest heavy duty z type sigma blade which is made to produce proper mixing as well as kneading the intense viscosity materials. "Abster" sigma mixer is perfect for several applications for various types stiff pastes, doughs, polyester compound, Hot Melt Adheshive, rubber compounds and much more. We use specialized manufacturing techniques to make our Double arm sigma mixer more efficient than other types of mixer available in this market. Moreover, our mixing products are available at extremely affordable rates that will perfectly suit all budgets.

Sigma Mixer Industry uses:

The sigma mixer is the best suited mixer for pasty, sticky, and gritty slurries with high viscosities. The following are some of the commonly used products that are mixed in the sigma mixer. Adhesives Biscuit dough, Butyl rubber, Carbon pastes, Ceramics, Chemicals, Chewing gum, Crayon and pencil lead, Explosives, Fiberglass resin doughs, Food and confectionery products, Gaskets and gland packings, Grinding wheel preparations, Hot-Melts, Inks and pigment products, Marzipan,, Mastics, Metal powders, Moulding preparations, Pencil erasers, Pharmaceuticals, Plastics, Putties, Refractories, Sealing compounds, Silicone rubber, Soaps and detergents, Solid propellants, Sugar pastes, Viscous rubber solutions , Compunded Hing, Asafoetida Sigma Mixer.

The sigma mixer have application to produce highly viscous materials like different kinds of Chemical, Dyes & Pigments, Paint, Polymers Plastic, Putties, Plastic, Pharmaceuticals, Printing ink, stiff pastes, adhesives, polyester Compounds, flush colors, brake lining compounds, resign, soap, PVC coatings, Rubber compounds, Confectionery, Magnetic Tape Coatings, Ceramic, Carbon Black, doughs, Food Products, Fiber Glass, Grease, Lead Storage Battery, Soap & Detergent Sigma Mixer etc.


Sigma Mixer Operation

This machine comprises of a double 'U' shaped container welded and machined together inside which rotates two 'Z' shaped sigma blades in opposite directions. The clearances between the walls and the container are kept to a minimum to ensure maximum efficiency in kneading and mixing. The shafts of the sigma blades are fitted in bearing blocks which are each provided with roller bearings, steel glands/teflon rubber seals for smooth and leakless operations. The kneader is mounted on a sturdy base frame fabricated out of ISMC sections and are free from vibrations. For cooling and heating jackets are provided.

These types of machines are available in M.S. And S.S. construction. The kneader can be tilted by means of a mechanical system or manually and for bigger models beyond 1500 Kgs we provided hydraulic tilting.

Hydraulic tilting system is provided with complete power pack, electric motor, pressure valves, pipes, fittings, cylinders and hoses which makes the tilting mechanism quick, easy and simple to operate.


Salient Features

  • Sigma Mixer is a Batch type Mixer
  • In sigma mixer, Mixing Trough and Blades are fabricated from mild steel, stainless steel 304 and 316 grade.
  • Blades of sigma mixers are designed to obtain thorough mixing of high viscosity materials.
  • Sigma Mixers Blades are machined to keep minimum equal gap between through walls and blades.
  • Sigma mixers have fixed with Heavy-duty gears to sustaion of load of Kneading.
  • Shaft sealing into the stuffing boxes is provided by Teflon Chevron Rings / PTFE breaded gland rope to prevent leaking from blade ends.
  • Safety Guards and Grills are provided for maximum safety in sigma mixers.

Sigma Mixer Options

  • GMP / Non GMP / models.
  • Discharge in sigma mixers is done by tilting container / bottom sliding valves / bottom gates / flush bottom gate valves.
  • Tilting in sigma mixers is done by hand liver / hand wheel with lead screw / electrical arrangements / hydraulic systems.
  • Lifting of lead either manually, with help of counter weights or hydraulically.
  • 'Z' Type Spiral blade / Naben / double naben blades to circulate hot / cold water in cases of heavy masses.
  • Jacketed shell for heating or cooling by steam, oil, water etc. with fiber glass insulation over the jacket.
  • Spray system for liquid addition / gas purge.
  • Flame proof / Non-flame proof electrical controls.
