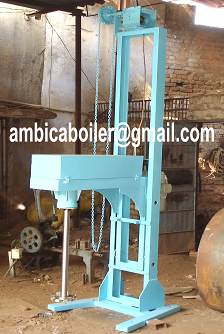

CONSTRUCTION: The machine consists of the following
DRIVE HEAD:
Steel fabricated enclosure inside which is installed the drive assembly consisting of a set of balanced pulleys, V belts, electric motor and motor tensioning device. The drive head is of hinged type construction which can opened and locked for maintenance.
MAIN SHAFT:
A SS 304 shaft duly machined and balanced is provided with a hard chrome plated cowless disperser blade of special design for quick and efficient dispersion. The disperser's blade is made from special steel to withstand high wear and tear. The shaft is installed in a bearing housing provided with taper roller bearings. Lubrication points are provided on the housing. RPM variable from 0-1500
SPEED CONTROL:
An AC Frequency inverter installed in a High Speed Disperser panel controls the RPM of the Disperser shaft from 0-1500. The inverter is provided with settings for monitoring torque, amperage, voltage, power factor ect and is PC compatible
ELECTRIC MOTOR:
A 3 phase, 415 V, 50 HZ TEFC motor, drives a set of pulleys and V belts. The Motor is provided with a belt tensioning device.
| Dispersing Shaft Lifting Way: | Hydraulic |
|---|---|
| Main Motor Power: | 5.5/7.5/11/15/18.5/22/30/37/45/55/75kw |
| Dispersing Disc Material: | Ss304 |
| Dispersing Shaft Rotary Speeds: | Variable |
| Application: | Paint, Ink, Pigment, Medicines, Coating, Chemicals |
| Transport Package: | wooden box |
