Z Arm Sigma Mixer

You are here:

Z Arm Sigma Mixer

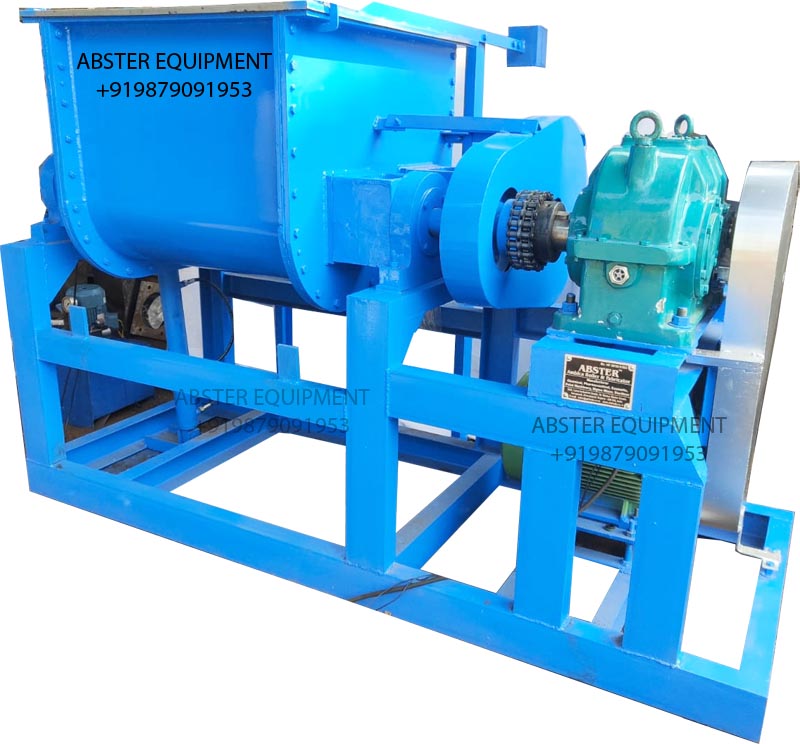

Z arm sigma mixer



Z Arm Sigma Mixer Description


Z-Arm Mixers. Heavy duty Z arm mixers for tough products. Suitable for bubble gum and chewing gum masses, the mixers will also mix many other stiff products. The mixers are jacketed and have their own self contained heating system. Complete with tilt.


Z blade Sigma Mixer Operation



Z blade sigma mixer

Models available: 150kg, 350kg, 500kg and 1000kg capacities. All Z-Blade Mixers are suitable for gum and heavy paste-type products. Jacketed machine with power tilting. For hot water or low pressure steam. Internal construction from stainless steel.


Details

ZB 5

ZB 150

ZB 500

Litre Capacity

5 kl

150 l

500 kl

Blades Fast Speed RPM

60

45

42

Blades Slow Speed RPM

40

25

26

Max MPa Steam Pressure

0.15

0.3

0.3

Water Heating KW

3.6

7.2

Blade motor KW

1.1

18.5

22

Tilt Motor KW

1.1

1.5

Internal Mixer Sizes

180 mm L x 200 mm W x 140~170 mm D

660mm L x 530mm W x 390~490mm D

840 mm L x  960 mm D x 650~850 mm D

Sizes

1200 mm x 420 mm x 380 mm high

2350 mm x 880 mm x 1200 mm high

2600 mm x 2200 mm x 2150 mm high
