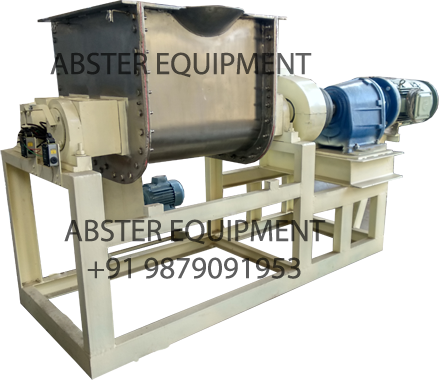

Welcome to Abster™ the most cost effective & reliable manufacturer modern and heavy duty, strong built Sigma mixer kneader to produce uniform mixing and kneading heavier viscosity materials. The Sigma mixture is suitable for many applications like mixing, kneading, Grinding, dispersion, drying etc.
The sigma mixer have application to produce highly viscous materials like different kinds of Chemical, Dyes & Pigments, Paint, Polymers Plastic, Putties, Plastic, Pharmaceuticals, Printing ink, stiff pastes, adhesives, polyester Compounds, flush colors, brake lining compounds, resign, soap, PVC coatings, Rubber compounds, Confectionery, Magnetic Tape Coatings, Ceramic, Carbon Black, doughs, Food Products, Fiber Glass, Grease, Lead Storage Battery, Soap & Detergent etc.
The sigma mixer is the best suited mixer for pasty, sticky, and gritty slurries with high viscosities. The following are some of the commonly used products that are mixed in the sigma mixer. Adhesives Biscuit dough, Butyl rubber, Carbon pastes, Ceramics, Chemicals, Chewing gum, Crayon and pencil lead, Explosives, Fiberglass resin doughs, Food and confectionery products, Gaskets and gland packings, Grinding wheel preparations, Hot-Melts, Inks and pigment products, Marzipan,, Mastics, Metal powders, Moulding preparations, Pencil erasers, Pharmaceuticals, Plastics, Putties, Refractories, Sealing compounds, Silicone rubber, Soaps and detergents, Solid propellants, Sugar pastes, Viscous rubber solutions , Compunded Hing, Asafoetida Sigma Mixer, Zirconium Crucibles dough sigma mixer, Zirconium Crucibles dough sigma mixer manufacturing
Ribbon Blender Mixer | Ribbon blenders | Powder Mixer - Ribbon Blender Mixer: Ribbon Blenders and Dry Blenders for dry blending applications in the chemical, cosmetic, food and plastics industries.
Use Of Sigma Mixer: Our SIGMA MIXERS have application to process Viscous to highly Viscous material in various industries viz. Adhesives, Broke lining, Chemical, Confectionery, Carbon Black, Ceramic, Dyes & Pigments, Food Products, Fibre Glass, Grease, Lead Storage Battery, Megnetic Tape Coatings, Paint, Polymers Plastic, Putties, Plastic, Pharmaceuticals, Printing ink, Resin, Rubber, Soap & Detergen, Compunded Hing, Asafoetida Sigma Mixer etc.
Construction of Sigma Mixer: SIGMA MIXER consist of "W" shaped container made of either Mild Steel or Stainless Steel 304 or 316 with jacket of Carbon Steel covering two side for heating or cooling application & dust free cover to get Vacuum if desired or normal cover. The mixing elements (Blades) are of Sigma type Steel casted and duly finished two in number which contra rotate inward fitted at close or specified clearance with the container to give thorough and uniform mixing. There is a Gland pusher of Gun Metal Bush which ensure minimal friction and extend the life of mixing elements (Blades) Shaft.
Sigma mixer Drive
The Sigma Mixer Drive Consists of Motor of type TEFC or TEFC Flameproof of Specified HP. 1440 RPM, Reduction Gear Box Of Reputed Make having suitable size and ratio, Spur Gears, are also provided of adequate size and having machine cut teeth, between the front and rear blade complete with guard suitable for grease lubrication.
Features of Sigma Mixer
SIGMA MIXER as the name suggests contains mixing element (Blades) of Sigma type two in number which contrarotates inward to achieve end to end circulation & thorough & uniform mixing at close or specified clearance with the container. The mixed product can be easily discharged by tilting the container by hand lever manually either by system of gears manually operated or motorised.
Check hear: How Does Sigma Blade Mixer Working?
