Sigma Kneader

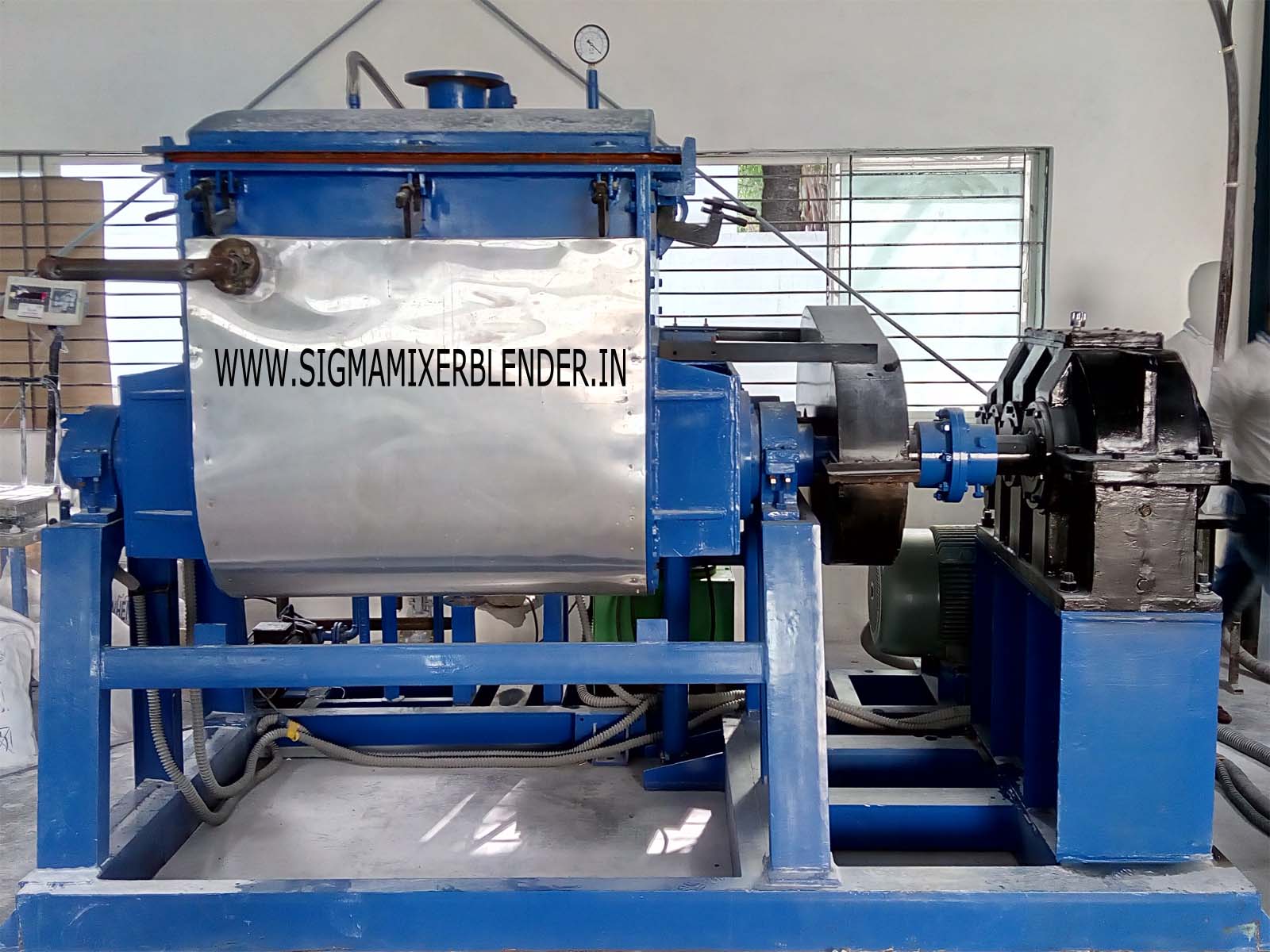

Sigma Kneader Machine

The sigma Kneader machine, also known as the sigma Mixer, is a unique and versatile mixing equipment designed to perform homogeneous kneading operations for heavier viscosity materials. It is characterized by its double Z blades that rotate in opposite directions, allowing for the achievement of uniform kneading with shear force.

This sigma kneader is widely used in various industries for mixing, kneading, and grinding operations, making it a must-have for applications such as adhesives, pharmaceutical products, polyester compounds, food products, soap, detergent, chemicals, dyes, pigments, putty, fiberglass, and confectionery items, among others.

Design and Construction of Sigma Mixer Machine

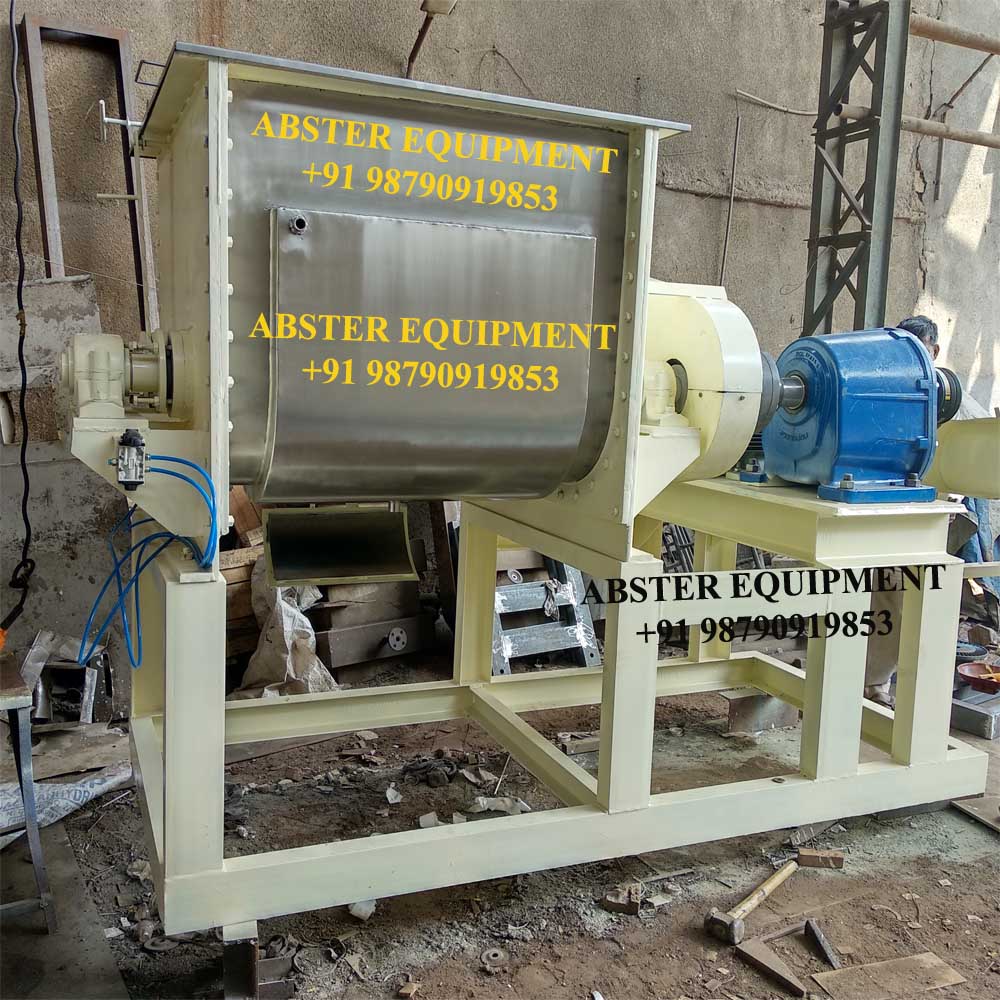

The sigma mixer machine consists of a double U-shaped bowl welded together, with two Z-type sigma blades that rotate in opposite directions to each other. The machine is designed to achieve utmost kneading and mixing efficiency, with the clearance between the walls and the containers kept as minimal as possible. The mixer trough and blades are made of mild steel or stainless steel depending on individual requirements. The Z blade mixer is equipped with safety guards and grills, scoring high marks in terms of safety.

Working Principle of Sigma Mixer Machine

The sigma mixer machine achieves thorough mixing through the tangential action of two Z-shaped kneading blades that rotate in opposite directions to transfer material from one blade to another, resulting in homogeneous mixing operations. This working principle allows the machine to perform uniform kneading with shear force, ensuring consistent and thorough blending of materials.

Advantages and Applications of Sigma Mixer Machine

The sigma mixer machine offers several advantages, including:

1. Versatility: The Sigma mixer machine is widely used in a variety of industries, including chemical, pharmaceutical, food, and cosmetics, for applications such as mixing, kneading, and grinding.
2. High Mixing Efficiency: The machine achieves high mixing efficiency, with the ability to thoroughly blend and knead materials to achieve consistent and uniform results.
3. Safety Features: The Sigma mixer machine is equipped with safety guards and grills, ensuring safe and reliable operation in various industrial settings.
4. Homogeneous Kneading: The machine is designed to perform homogeneous kneading operations for heavier viscosity materials, ensuring uniform mixing and blending of various products.
we are also manufacturig of plough shear mixer for mxing and kneading

Sigma Kneader Application

Coatings Industry
Dye stuffs Industry
Printing Inks manufacturing
Silicone Rubber Compounding
Paper coatings
Photographic Inks
Pigments
Offset Inks
Lubricant
Electronic chemicals
Enamel
Chocolate

Capacity Table of Sigma Mixer

Models	Working Capacity	Gross Capacity	Main Motor	Extruder Motor
SME – 50	50 Liters	80 Liters	7.5 H.P.	1.5 H.P.
SME – 75	75 Liters	110 Liters	10 H.P.	2 H.P.
SME – 100	100 Liters	150 Liters	15 H.P.	2 H.P.
SME – 150	150 Liters	200 Liters	20 H.P.	3 H.P.
SME – 200	200 Liters	300 Liters	25 H.P.	3 H.P.
SME – 400	400 Liters	550 Liters	40 H.P.	5 H.P.
SME – 500	500 Liters	750 Liters	50 H.P.	5 H.P.
SME – 750	750 Liters	1150 Liters	60 H.P.	5 H.P.
SME – 1000	1000 Liters	1500 Liters	70 H.P.	7.5 H.P.
SME – 1500	1500 Liters	2100 Liters	80 H.P.	7.5 H.P.
SME – 2000	2000 Liters	2600 Liters	90 H.P.	10 H.P.
SME – 3000	3000 Liters	3800 Liters	120 H.P.	10 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
