Application and introduction

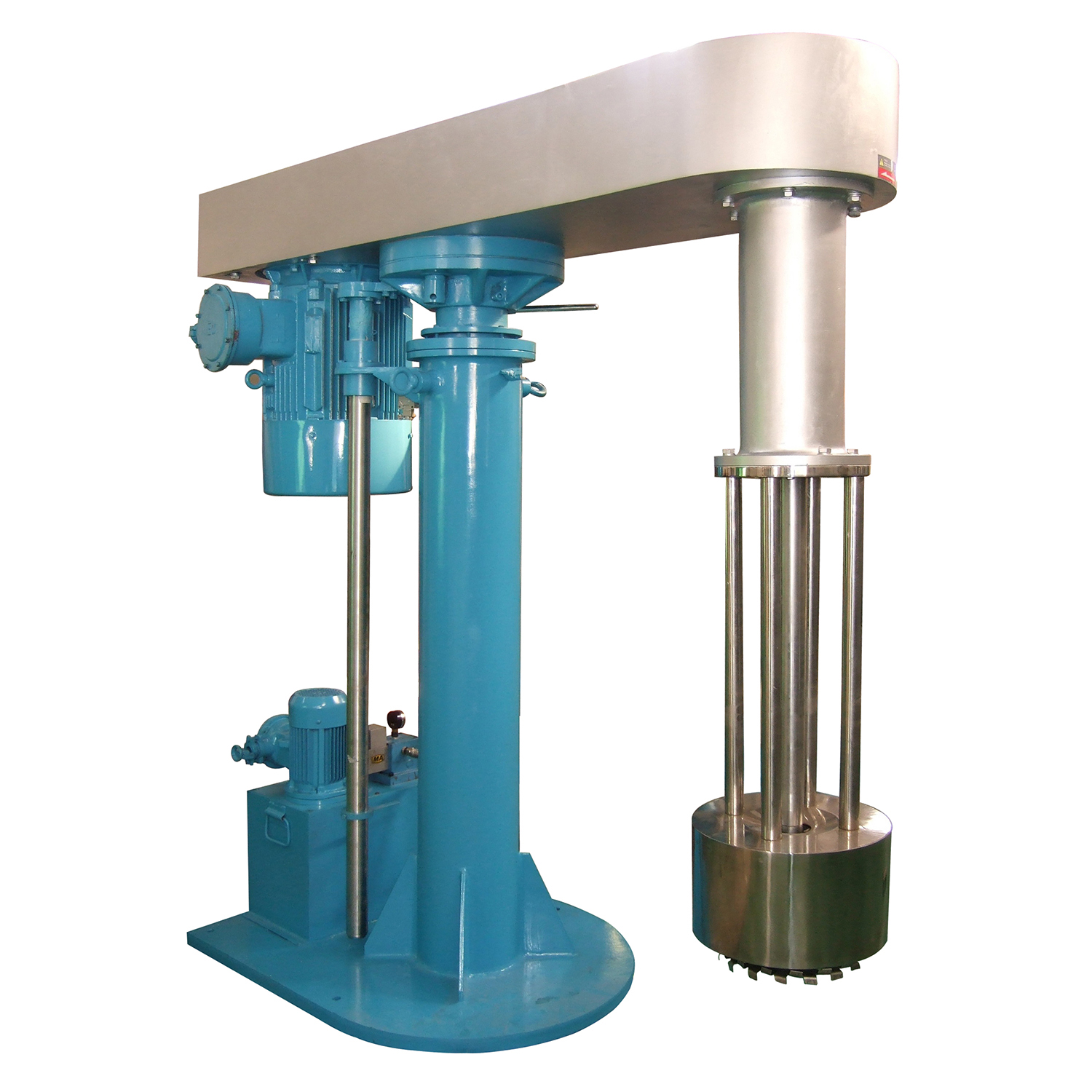

Basket mill is a special design with dispersing and milling together finished in one machine , it is suitable for liquid materials with Mid-low viscous ,It is worked with high degree efficiency is a good choice for batch production, It is with easy operation and easy to clean and change the colors ,It save time to keep the production continuously. Basket mill is now widely used on paint and coating ,Pigment , Adhesive , Printing ink ,color paste ,emulsion paint ,and fertilizer and so on . Especially for paint industry , Basket mill for paint and pigment is nowadays become the necessary batch production machine . Its high efficiency and special design for disperser and grinding together save the energy and improve efficiency.
How it work
The Basket bead mill is driving by the motor and the dispersing disc and the mill in basket is rotating with high speed. The Vortex flow generated by the high speed rotating disperser disc in the bottom and the materials flow into the basket by the vortex , The grinding media inside the basket start milling and shearing the materials in a strong collision and friction with high speed rotating , then the materials down to the disperser disc by the flow and go into another time recycle , Two parts work together and the materials achieved well dispersed and grinding ,Therefore basket mill improve the working efficiency, and keeping the stable quality at same time.
Other advantages
Basket mill is with disperser and grinding together. Inverter control speed for different production request , Two device together worked in a single drum ,save the energy and improve the quality of the materials.
Basket mill for paint is with easy operation and easy clean inside the grinding chamber for different color produce . The drum is with cooling jacket for cooling down the temperature caused by milling and disperser during production ,But sometime the temperature increase very less ,It depend on the production request.
The hydraulic lifting system drive the head mill up and down to make sure all materials achieve well disperse and grinding . Motor ex-proof, Vacuum.drum clamping device are all optioned . Materials Stainless steel 304 and 316 for option.
Technical data
Model | Power (kw) | Capacity (L) | Speed (rpm) | Basket volume(L) | Lifting height(mm) | Weight (kg) |
MBM-7.5 | 7.5 | 50-200 | 0-1440 | 5 | 900 | 800 |
MBM-11 | 11 | 100-200 | 0-1440 | 7 | 900 | 1000 |
MBM-15 | 15 | 100-350 | 0-1440 | 9 | 900 | 1200 |
MBM-18.5 | 18.5 | 200-500 | 0-1440 | 17 | 900 | 1500 |
MBM-22 | 22 | 200-800 | 0-1440 | 20 | 900 | 1700 |
MBM-30 | 30 | 200-1200 | 0-1440 | 32 | 900 | 2000 |
MBM-37 | 37 | 500-1500 | 0-1440 | 40 | 900 | 2300 |
MBM-45 | 45 | 800-2000 | 0-1440 | 55 | 900 | 3000 |
