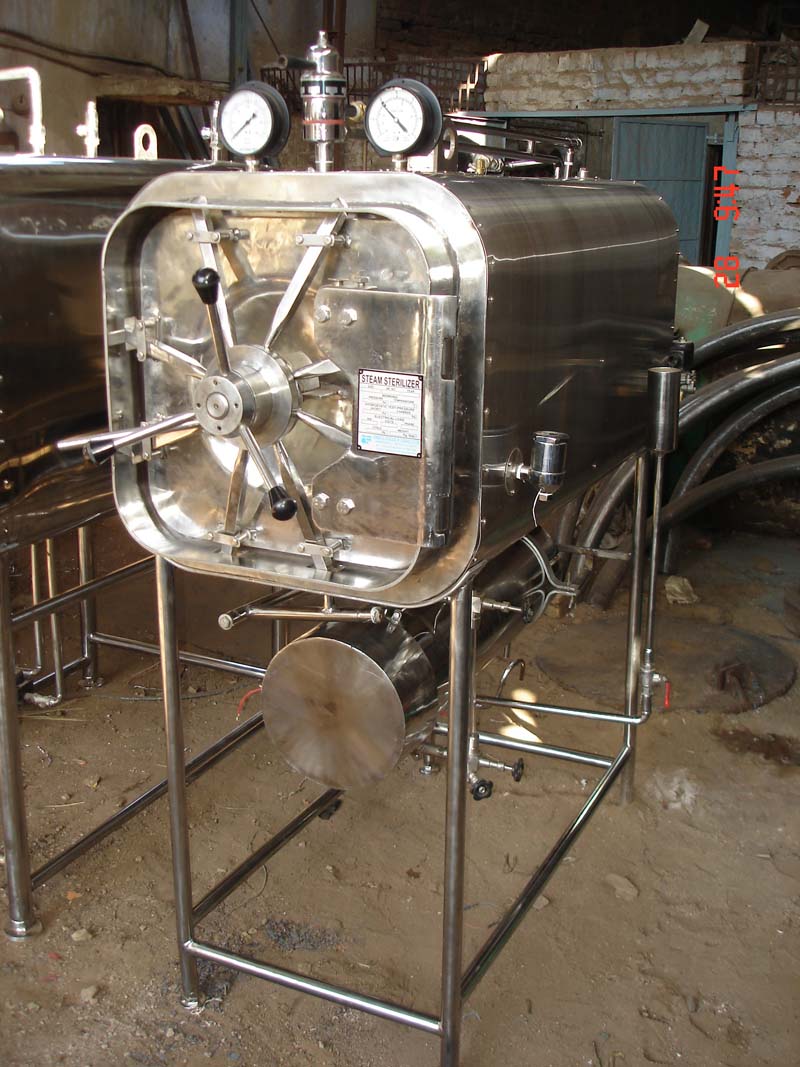

Horizontal Rectangle Autoclave Sterilizer

We are engaged in manufacturing, supplying and exporting a wide range of Medical Sterilizer. These products are designed in various specifications to meet the diversified needs of the clients. Our quality controllers make sure that the range is stringently tested on various parameters before it gets delivered to the clients. We offer:

Ideal for parenteral solutions, injectables, mattresses and hospital dressings, Horizontal Rectangular Autoclave Steam Sterilizer is offered at industry leading price rates. It is a large sized sterilizer, which is integrated with thermograph and pump for rapid cooling system. The range has an operating temperature 121° C or higher.

Some highlighting features of our products are:

• Uni-point control station for all phases of the sterilizing cycle in smaller size.
• Provided with safety precautions such as pressure locking door, spring loaded safety valve and dead weight safety valve
• Loading carriage and trolley as standard accessories for easy transfer of loads
• Choice of single door, double door and recessed or panel models
• Various material combination like mild steel, stainless steel 304 / 316 available
• Steam Trap is incorporated in discharge line for fast and perfect elimination of air
• Size available from 12 cft. to 325 cft. or higher

  Salient Features :



• Best suited for parenteral solutions, injectables, mattresses and hospital dressings
• Unipoint Control station for all phases of the sterilizing cycle in smaller size. Operating Temperature 121° C or higher
• All necessary safety precautions namely, pressure locking door, spring loaded safety valve, dead weight safety valve etc incorporated
• Loading carriage and trolley as standard accessories for easy transfer of loads
• Choice of single door, double door, recessed or panel models
• Various material combination like Mild Steel, Stainless Steel 304 / 316 available
• Steam Trap is incorporated in discharge line for fast and perfect elimination of air
• Size available from 12 cft. to  325 cft. or higher



Optional Features :

• Single / Double  Doors
• Flush Mounted
• Thermograph
• Rapid Heating
• Rapid Cooling
• High Vacuum Pump
• PC (Computer) based Auto Control Panel
• Air Over Steam Pulsing Pressure System

	Chamber	:	SS 316 / SS 304
	Jacket	:	SS 304
	Operating Temp	:	121oC-131oC
	Operating Pressure	:	1.2 Kg/cm 2-2.1Kg/cm2
	Door	:	Radial Locking System
	Mode of Operation	:	Manual with Multi-port valves
	Steam Generator	:	SS 304 with immersion Heating System with automatic pressure  cutoff device and Low water cutoff device
	Optional
	Carriage	:	SS 304
	Transfer Trolley	:	Rolled Steel
	Safety Features	:	Low Water Protection Device, Automatic, Pressure Switch, Safety Valves
	Control System	:	Automatic micro controller
