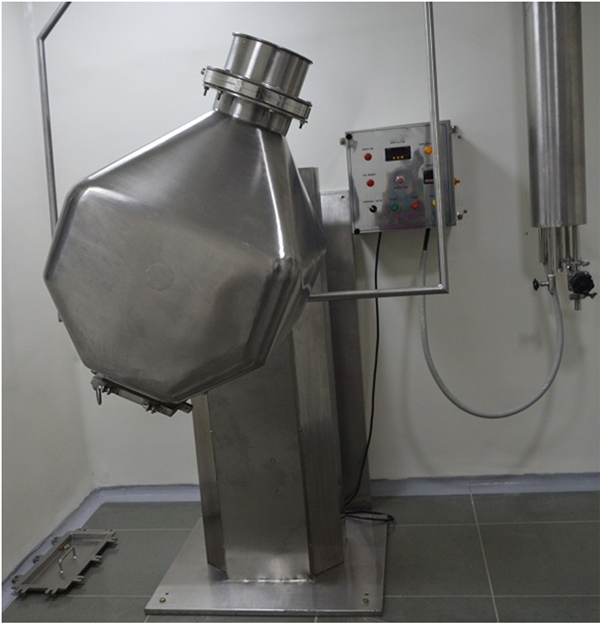

Octagonal Blender Manufacturer

OPERATION

Octagonal blender is a very precision machine, performing dry blending of powder or granules in only 10 to 30 minutes. This machine is utilized for mainly homogenizing, blending and also for granules lubrication as that facilitates better flow ability at a tablet press while compressing this granules..

The container is brought close to the blender on special trolley having lifting arrangement. This lifting pallet ensures that the container is lifted and is aligned with the transition piece fixed with the blender outlet butterfly valve. This transition piece mouth is clamped with the outer periphery of the container using special type of clamps. Now after clamping the container (100 lits) the blender is inched till the container is vertically inverted over the blender. Now once the container reaches upward inverted position, the butterfly valve is made to open by special hand wheel so that entire content of the container gets unloaded into the blender. Once it becomes empty, the valve is closed and container is brought again downward by rotating the blender again by 180oC and another container is fixed and raised and in similar way and this way entire powder content is unloaded. By this method material is loaded in batches of 50 kg each.

GENERAL FEATURES

• Octagonal will be mirror polished from the inside & outside & structure will be matt polished.
• As per customer requirement machine will be provided with left side drive or with right side drive.
• Worm reduction gear use for speed reduction.
• Food grade rubber gasket will be used on both end of cone as well as in butterfly valve.
• Hand wheel will be provided for manual tilting of blender.
• FLP MOTOR (Optional)
• and direction can be made as per client requirement.
• Structure made from SS304
• Variable load capacity available
• IBC Lock System ( can adjust for various capacity IBC)
• Sensor checking lock system before machine start.
• Safety Bar to cover moving part.
• Rotation of tank in vertical.
• Variable Speed of rotation by VFD.
• PLC and Color Touch Screen Control. (Optional feature)
• Timer to adjust batch time.
• PLC Control color touch screen include printer and interface to network can monitor and save operation on PC computer. (Optional feature)
• Maximum care has been taken to ensure safe operation of the unit.





Sigma Mixer Capacity

CAP IN KGS.	CAP IN LTRS.	GROSS VOLUME	MOTOR	GEAR BOX	DISCHARGE VALVE	OVERALL DIMENSIONS L X W X H
5	15	20	0.5	-	-	As per client requirement
25	50	75	0.5	-	-	As per client requirement
50	150	175	1	22	150	As per client requirement
100	300	375	1.5	22	150	2165 X 1535 X 2585
165	500	600	2	30	200	2250 X 1800 X 2700
200	600	725	2	30	200	2300 X 1800 X 2800
250	750	875	3	35	200	2300 X 1850 X 2800
265	800	950	3	35	200	2350 X 1000 X 2800
335	1000	1150	5	50	250	2700 X 2100 X 3050
400	1200	1300	5	40	250	2800 X 2270 X 3050
500	1500	1700	5	50	250	2850 X 2525 X 3120
650	2000	2200	7.5	50	300	2800 X 2800 X 3350
850	2500	2700	7.5	60	300	2800 X 2800 X 3450
950	2800	3500	10	60	300	2800 X 2900 X 3500
1200	3400	4000	10	60	300	2900 X 3000 X 3700
