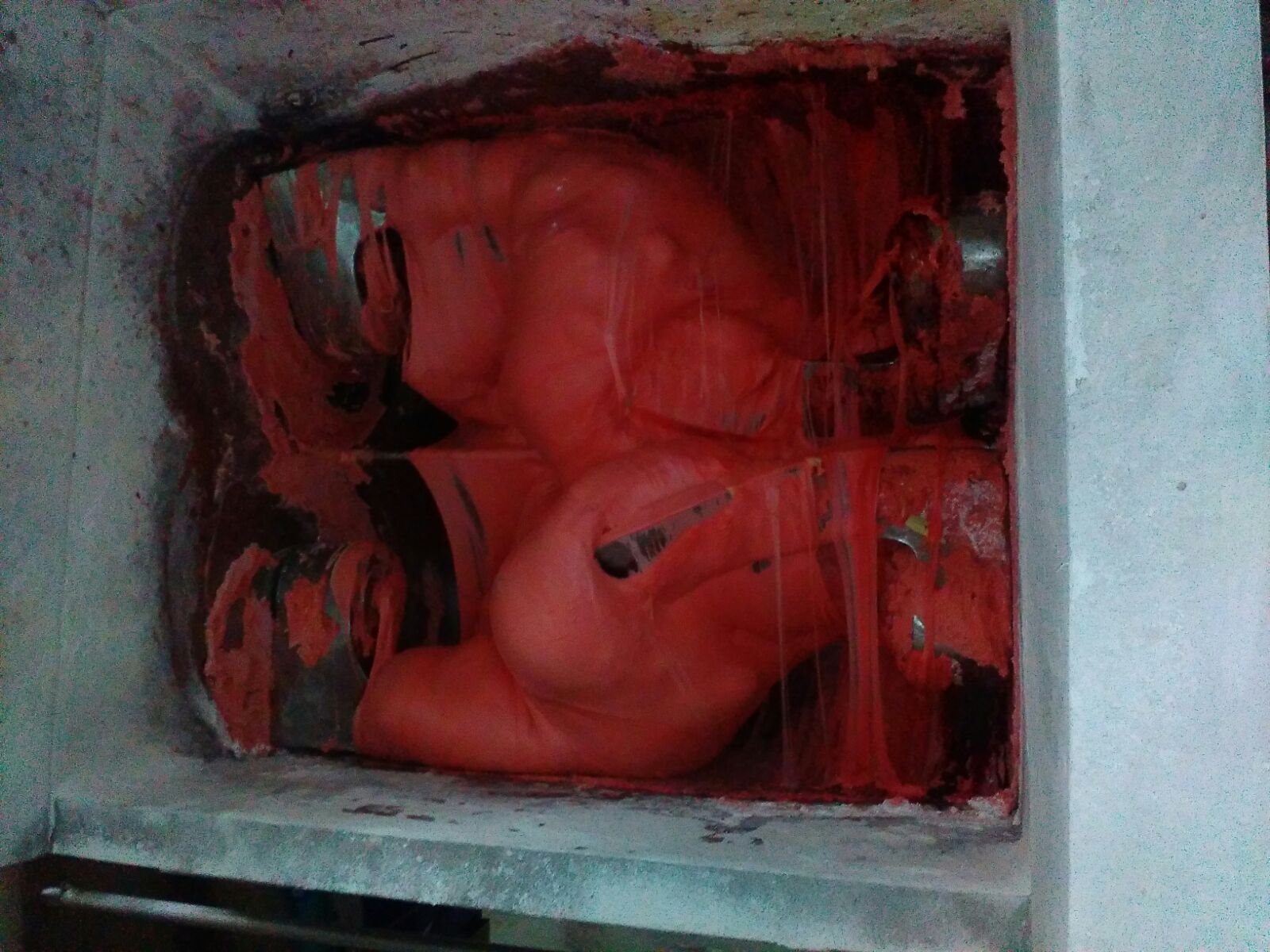

Our heavy duty steam jacketed mixer is used for bubble gum base manufacturing. we have supplied to varuois manufacturer of gum base manufacturer across India.
Application and introduction

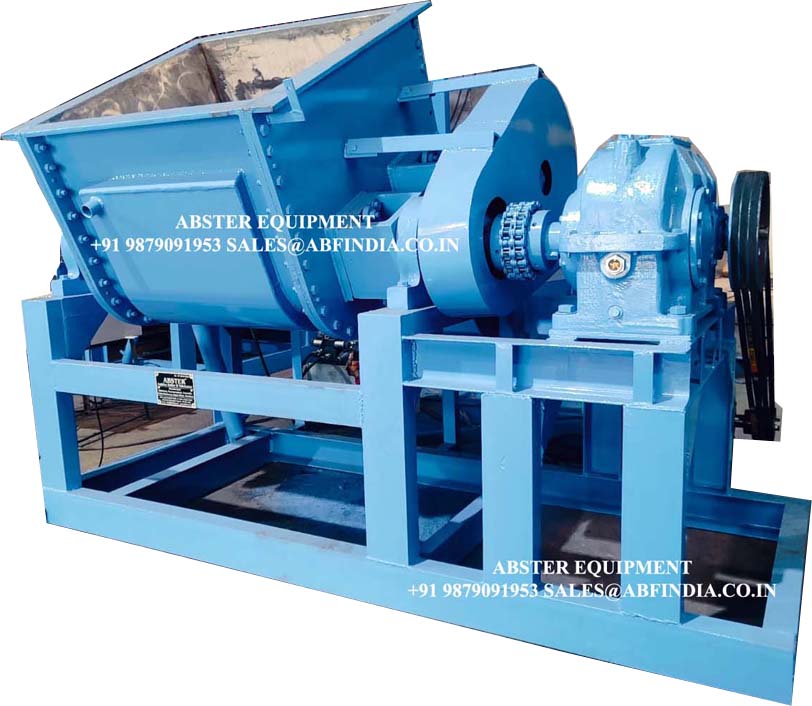

Sigma mixer is an widely used mixing machine ,with strong mixing blade and motor ,mainly for high viscous materials and slurries, It with special Z blade ,and a U shape chamber with cover , Two blade rotating with different speed ,one is slow and one is quick .two speed producing an high forced power to the materials to make the materials well mixed and stable uniformed.
The sigma blade mixer is widely used on many areas which are suitable for hard and hIgh viscous materials .like food industry ,plastic .,rubber ,and chemicals.
Bubble gum sigma mixer is an very necessary equipment for bubble gum and chewing gum production ,It is working with high efficiency and low energy cost . and vacuum system and screw extruder device is guaranteed the quality and purify.
A Sigma mixer works by using two blades that rotate at different speeds to mix materials through a combination of shearing, stretching, folding, and other actions:
In Sigma mixer The front blade rotates faster than the rear blade, usually in a 3:2 ratio. This design is used for materials with higher viscosities, such as adhesives, rubber compounds, and dyes.
The blades rotate at the same speed and overlap each other. This design is used for materials with lower viscosities, such as carbon pastes, creams, and ointments. Dual-shaft design The blades rotate in opposite directions, allowing the user to control the amount of shearing by changing the angle of blade twist.
Sigma mixers are a type of double arm kneader mixer and are made up of several parts, including a kneading part, base part, hydraulic system, transmission system, and electric control system.
| Models | Working Capacity | Gross Capacity | Main Motor | Extruder Motor |
| SME50 | 50 Liters | 80 Liters | 7.5 H.P. | 1.5 H.P. |
| SME75 | 75 Liters | 110 Liters | 10 H.P. | 2 H.P. |
| SME100 | 100 Liters | 150 Liters | 15 H.P. | 2 H.P. |
| SME150 | 150 Liters | 200 Liters | 20 H.P. | 3 H.P. |
| SME200 | 200 Liters | 300 Liters | 25 H.P. | 3 H.P. |
| SME400 | 400 Liters | 550 Liters | 40 H.P. | 5 H.P. |
| SME500 | 500 Liters | 750 Liters | 50 H.P. | 5 H.P. |
| SME750 | 750 Liters | 1150 Liters | 60 H.P. | 5 H.P. |
| SME1000 | 1000 Liters | 1500 Liters | 70 H.P. | 7.5 H.P. |
| SME1500 | 1500 Liters | 2100 Liters | 80 H.P. | 7.5 H.P. |
| SME2000 | 2000 Liters | 2600 Liters | 90 H.P. | 10 H.P. |
| SME3000 | 3000 Liters | 3800 Liters | 120 H.P. | 10 H.P. |
* Power voltage can be adjusted as per customer's domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
